Flagship · Integrated Mission Platform
The complete brain for autonomous machines, in a single module — Edge AI, flight control and secure 5G. No code, plug & deploy.
Overview

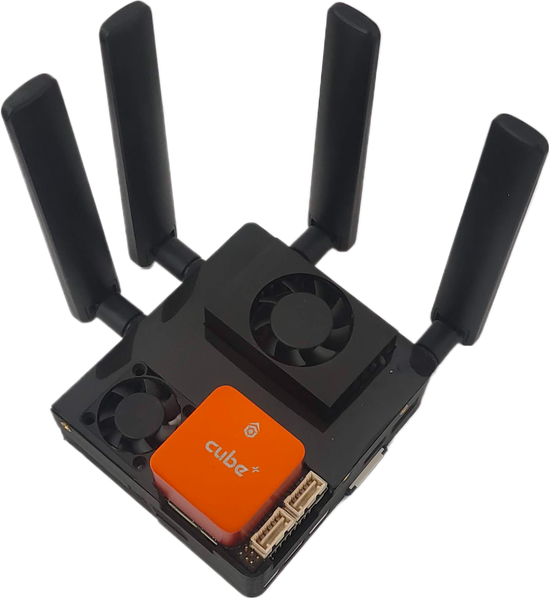

CubeAI 5G is DroneAI's flagship — a single integrated module that gives an autonomous machine everything it needs to think, fly and stay connected. Inside one unit are the EdgeAI OS and a dedicated AI processor running detection models, a Cube Orange+ class flight controller, a 5G modem and secure telemetry. Instead of integrating five subsystems yourself, you drop in one board.
Because inference runs on-board, the mission keeps thinking even when the link drops — detections are made at the edge and streamed over 5G to DroneAI Cloud Control Solution for beyond-line-of-sight control. The same module fits a UAV, a UGV or a USV, so a capability you prove on one platform carries straight to the next.
It is designed to be no-code and plug & deploy: secure boot, signed firmware and encrypted telemetry come configured out of the box (DGCA Sec-7 ready), which is how CubeAI 5G cuts a typical integration from months to weeks.
What's inside the box
One of the most advanced flight controllers available — triple-redundant IMU sensors, ArduPilot compatible, proven on professional drones, UAVs, rovers and even submarines.
Powers the drone's advanced software — on-board computer vision, digital HD video streaming and payload data streaming.
Integrated LTE/5G and WiFi modules hold a permanent broadband link — the always-on connection that makes remote, beyond-line-of-sight workflows possible.
In the box: the DH-AI-5G main unit, 4× antennas for 5G and LTE, a power module and the full cable set — CSI cable, XT60 and XT30 harnesses.
One deployable unit
Autonomous machines need a brain. CubeAI 5G carries the AI processor, a Cube Orange+ flight controller and secure 5G in one field-ready unit — drop it onto any airframe, rover or vessel and it is ready to fly.
Edge to cloud · Encrypted end-to-end
Sensor feeds run through the on-board AI processor, then stream encrypted over 5G to DroneAI Cloud Control Solution — enabling true BVLOS mission control with live AI detections.
On-device AI
Detection runs on the module and streams annotated video and geotagged detections to the dashboard — with tools to focus and review what the AI sees.
Developed in-house to detect objects both in the air and on the ground — the hard aerial-vantage case that off-the-shelf models miss.
A widely-used object-detection model known for its speed and accuracy, selectable live from the dashboard.
Draw ROIs on the live feed to generate specialised analytics for just those zones.
Every detection is pinned to GPS coordinates on a map and reviewable by session — current or historical.
Technical Overview
| Model | DH-AI-5G (all-in-one unit) |
| Flight controller | Cube Orange+ — triple-redundant IMU (ArduPilot compatible) |
| Mission computer | NVIDIA Jetson Orin — 8 GB or 16 GB configurations · on-board computer vision & HD video / payload streaming |
| Edge AI | On-device detection — in-house Aerial model + Standard YOLO |
| Connectivity | 5G / LTE + WiFi · 4× 5G/LTE antennas · Nano-SIM |
| Positioning | Here3+ CAN GPS |
| Cameras & RC | Gimbal + CSI camera · HereLink / SIYI HM30 — HD transmission up to 30 km |
| Cloud | DroneAI Cloud GCS — fleet management, AI dashboard, geotagged detections & session history · secure telemetry / SSH tunnels over 5G |
| Security | Secure boot, signed firmware, encrypted telemetry — DGCA Sec-7 ready |
| Power | Power module — XT60 input (XT30 / barrel harnesses) · 3S battery, <12 V |
| In the box | DH-AI-5G main unit · 4× 5G/LTE antennas · power module · CSI, XT60 & XT30 cable set |
| Platforms | UAV · UGV · USV |
Hardware, up close
Why DroneAI
The kit mounts beside the autopilot on one cable. Nothing is removed and nothing is retrained: the pilot keeps the radio, and the commander gets AI alerts and live video over 5G.
Proven in the field
Edge AI detection of persons and vehicles with geo-tagged alerts to the command post; every sortie saved and searchable.
Drones and dumper trucks on one private 5G network and one dashboard — aerial video, LiDAR and truck telemetry together.
Live 5G flights and AI demos for forces, telecom operators and industry. See the events
Questions buyers ask
Manufacturers and integrators building new drones, rovers or boats. They include the flight controller, so they go into new platforms rather than upgrades.
A Cube autopilot running ArduPilot.
Secure boot and signed firmware updates.
Cube5G switches to 5G when the Herelink link drops, and an optional satellite backup covers the case where both links drop.
GPS-denied navigation by visual and terrain matching, and a single-board unit with flight controller, GPU AI and 5G for small, FPV and interceptor drones.
Talk to us about your platform: the contact page or +91 98866 91115.
Tell us about your airframe, rover or vessel — we'll map CubeAI 5G to your mission and get you flying in weeks.
